On/Off/Automatic Driving lights

Article by Craig Ueltzen

This project is not as hard as it may look. The idea is to run your driving lights using the

high beams as a control. You can disable the lights, turn them on manually, or have the driving

lights follow the high beams. The automatic mode is a must for highway driving, because the

driving lights go on/off with high beams. Manual on is handy for off road or lighting a campsite

without the headlights having to be on for them to work.

If you use KC Day Lighters or some other high powered lights: See schematic below!

Using 55W Driving Lights

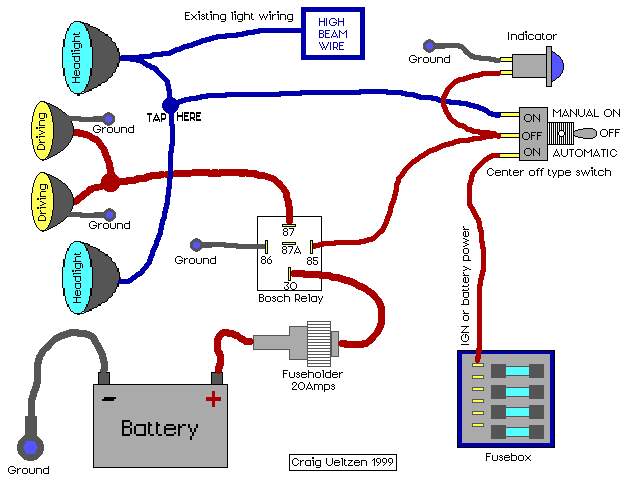

This diagram shows the wiring using a Bosch relay. These are found just about everywhere.

Using 100W+ Driving lights

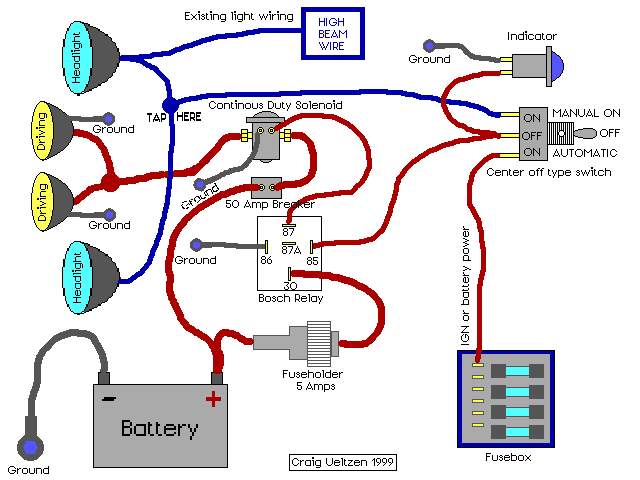

Don’t use a Bosch relay to directly power the lights. Use it to operate a continuous duty solenoid

instead. Do NOT use a starter solenoid, because it will burn up in minutes if left on.

A pair of 150 Watt KC’s will draw about 24 amps for the set. A bosch relay is rated 20/30 Amps,

but the contacts will weld closed due to the high startup surge of about 50+ amps. Use a 50 amp

breaker inline with the solenoid also.

With any lightbulb, the filament has a low resistance until it heats to white hot. As it heats up,

the resistance becomes higher, & the bulb draws less current. The watt rating is with a heated &

operating bulb at the rated voltage. This is also the reason most bulbs fail when first turned on.

The startup surge will actually create a high magnetic field & move the filament around as it

heats up. The current surge & sudden movement is what causes failure of the bulb. After hours of

use, the filament gets fatigued & prone to breakage.

~
